Part Reference:
SV-PRO-H

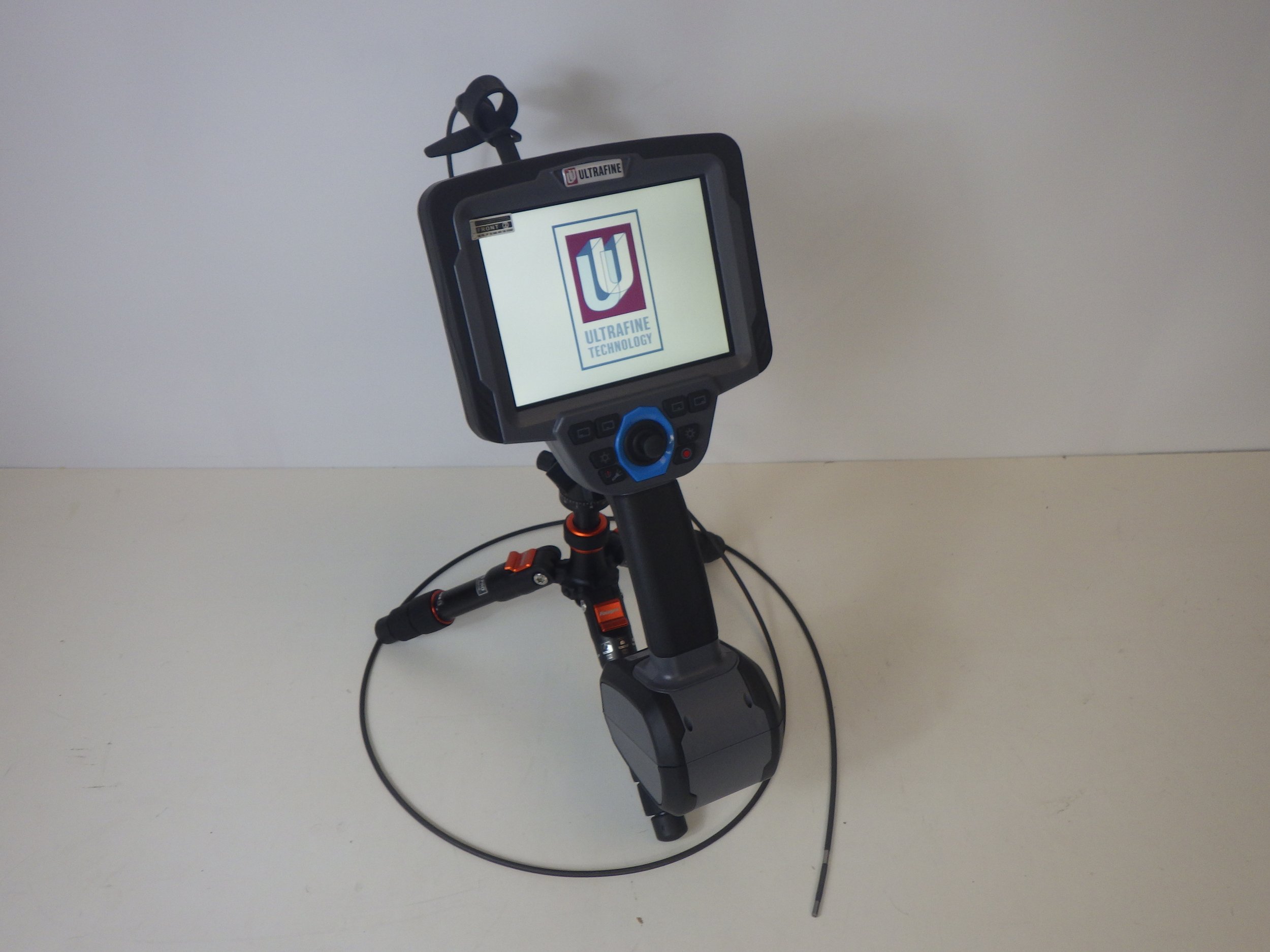

SV-Pro 3D Measurement Video Borescope Handset
6.5" HD Touchscreen Monitor
USB 128GB Hard Drive Storage and USB 3.0 Socket
Original Version Software

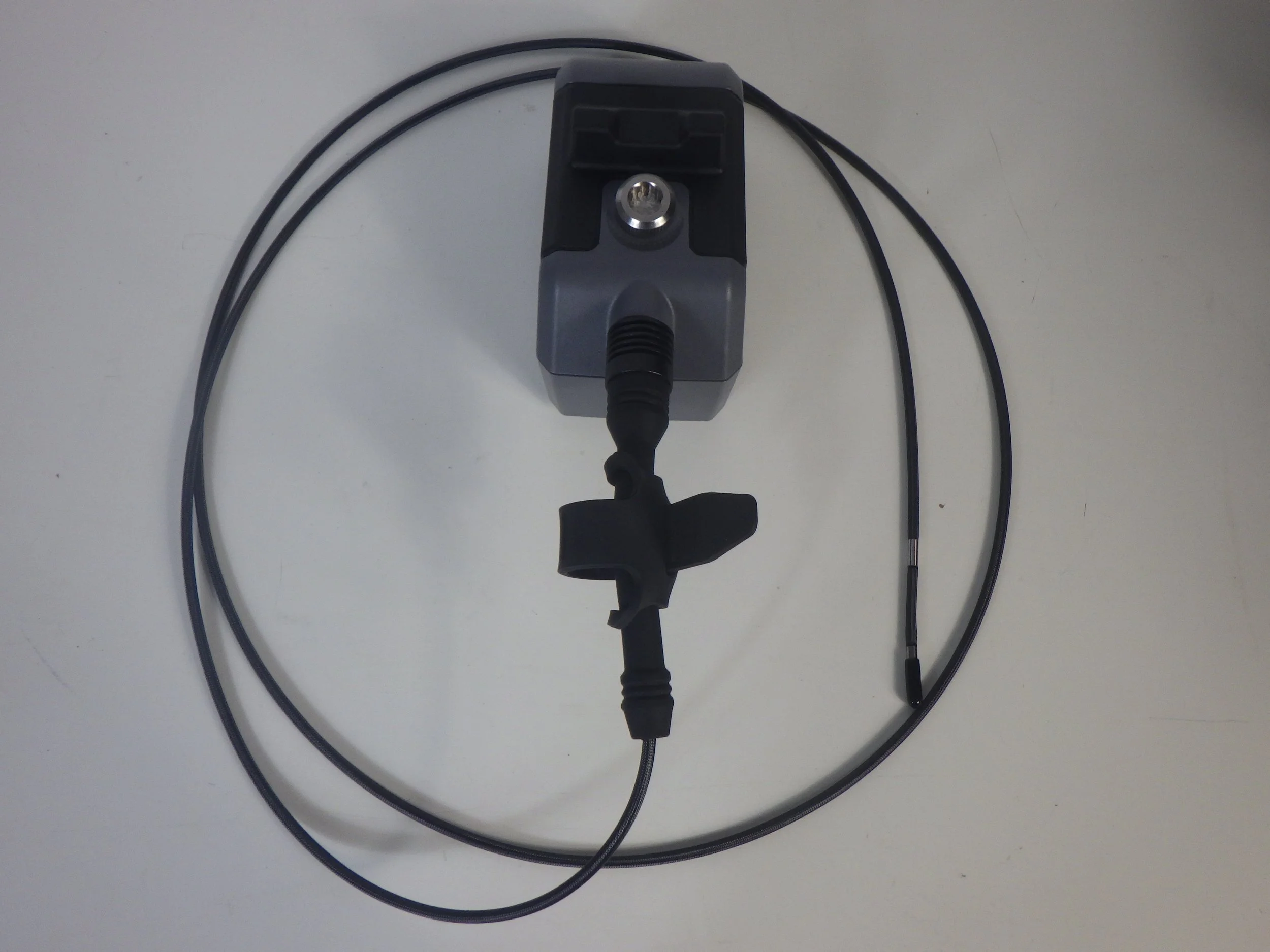

UF-3920SV-M
3.9mm x 2000mm Measurement Probe Module
Forward View 0° DOV IP64
Fiberoptic Illumination
Optimum Focal Distance 8 - 80mm with 120° FOV
Optimum Measurement Cloud Range 20 - 40mm
720p Resolution
4-Way Servo-Assisted Articulation
UF-3920SV-90-M
3.9mm x 2000mm Measurement Probe Module
Side View 90° DOV IP64
Fiberoptic Illumination
Optimum Focal Distance 8 - 80mm with 120° FOV
Optimum Measurement Cloud Range 30 - 50mm
720p Resolution
4-Way Servo-Assisted Articulation
BAT04
Smart Rechargeable Battery Pack
11.1V 7000mah Rechargeable Li-On
Mains Power Supply

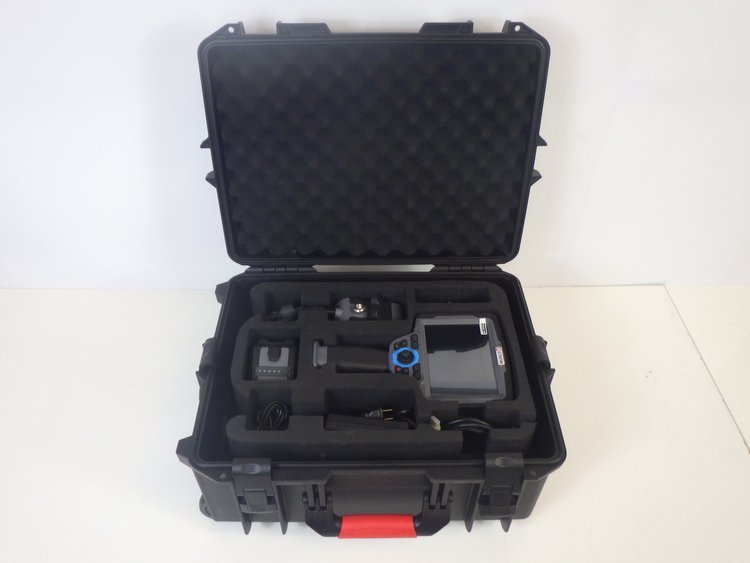

TC012
Transport Case with Foam Insert
54cm x 44cm x 27cm
TP002
Adjustable Tripod Stand
Calibration Block (ISO 17025 Certification optional)
