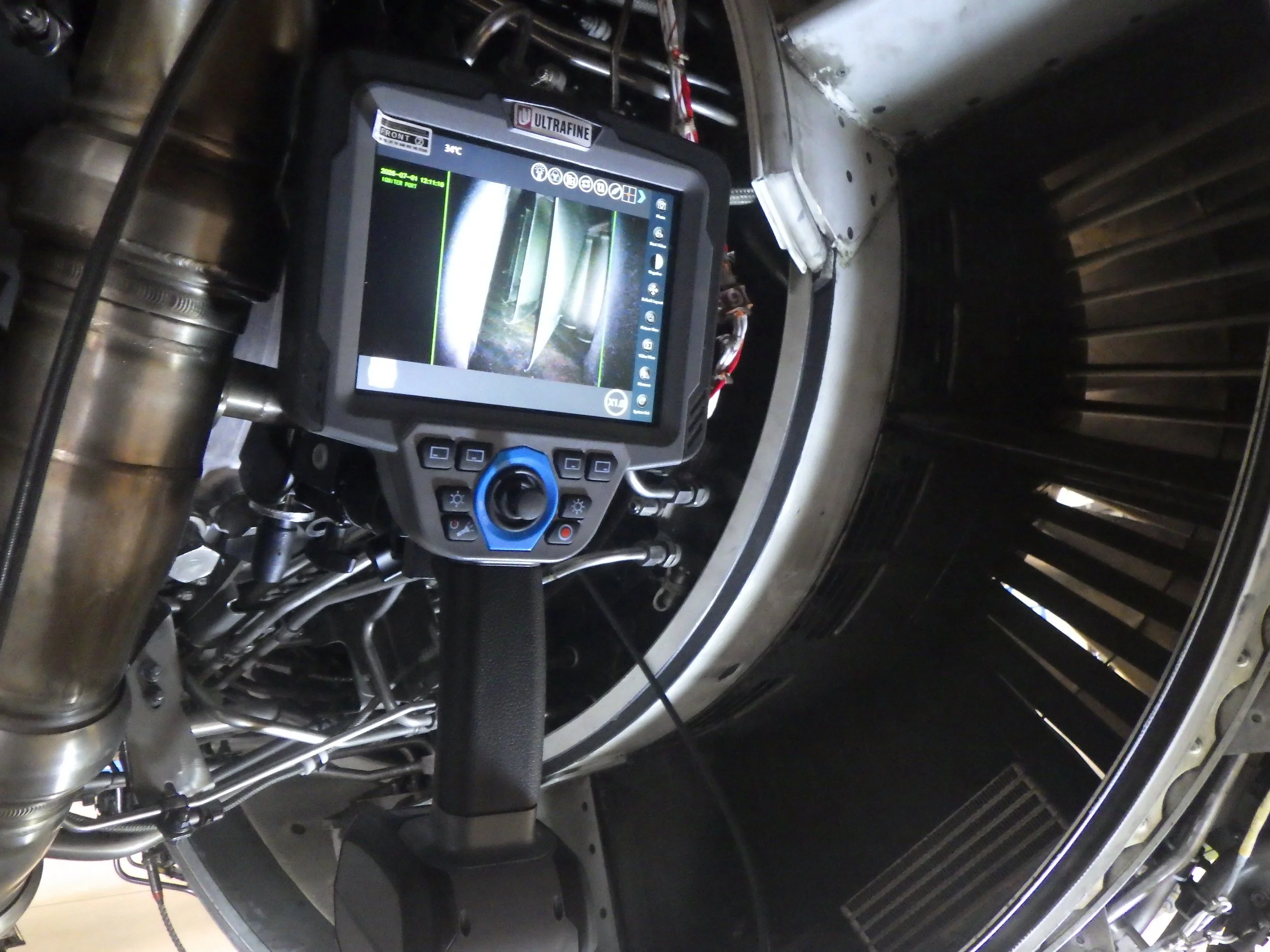

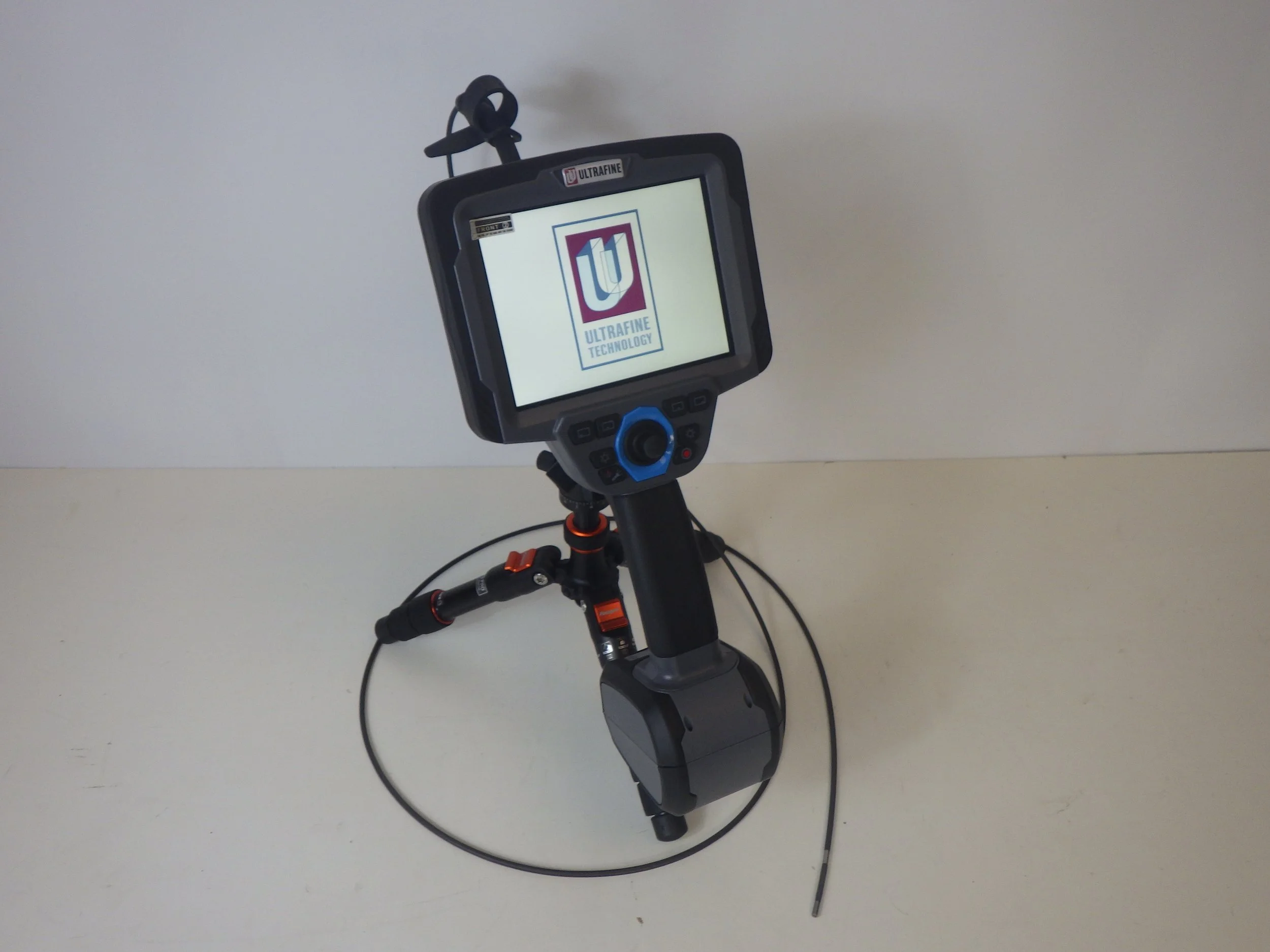

New 3D Measurement Videoscope

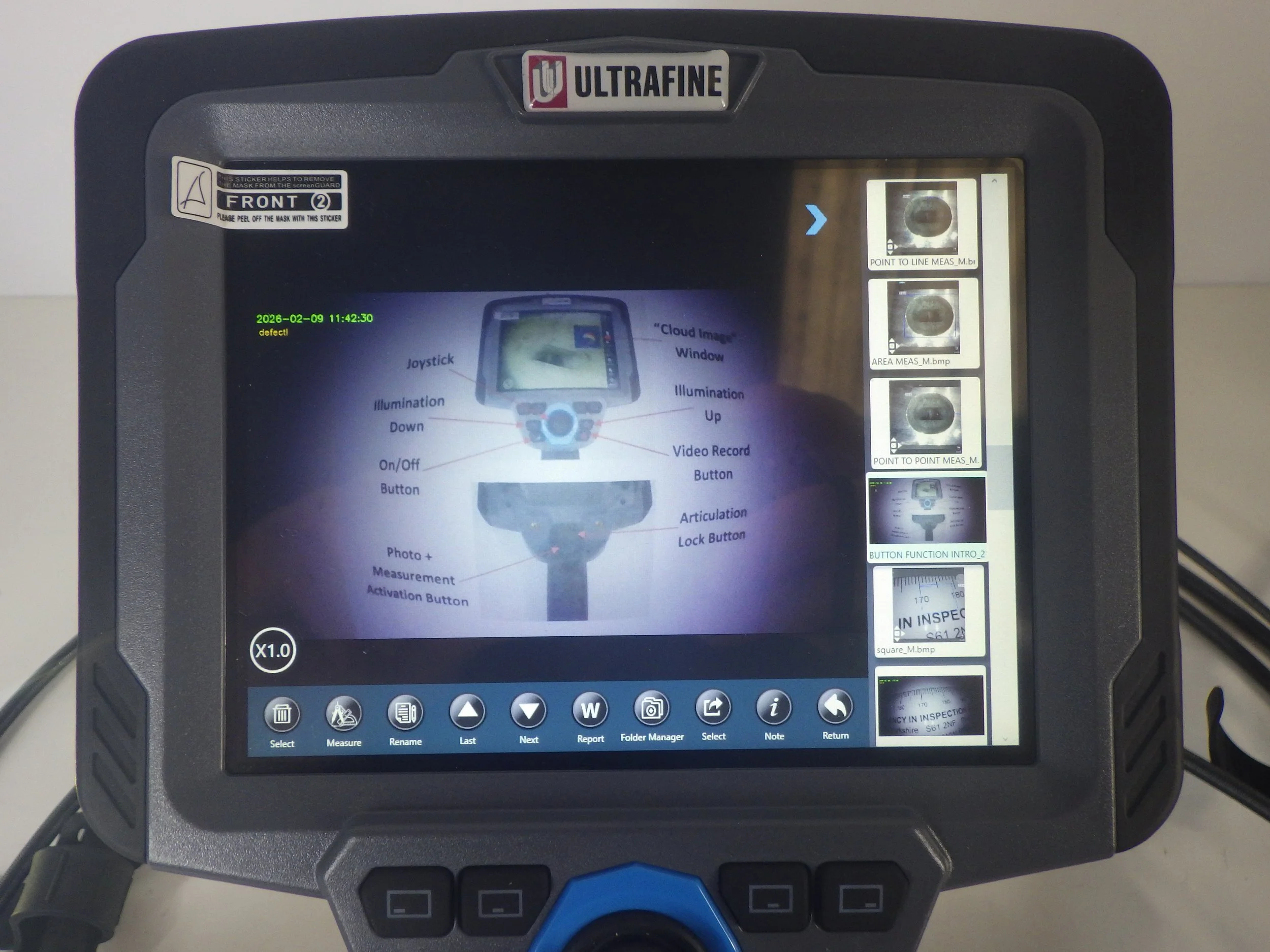

• Latest 6.5” High Definition Touchscreen Display

• 720p Image with 1080p option

• Superior Fiberoptic 8-Stage Illumination

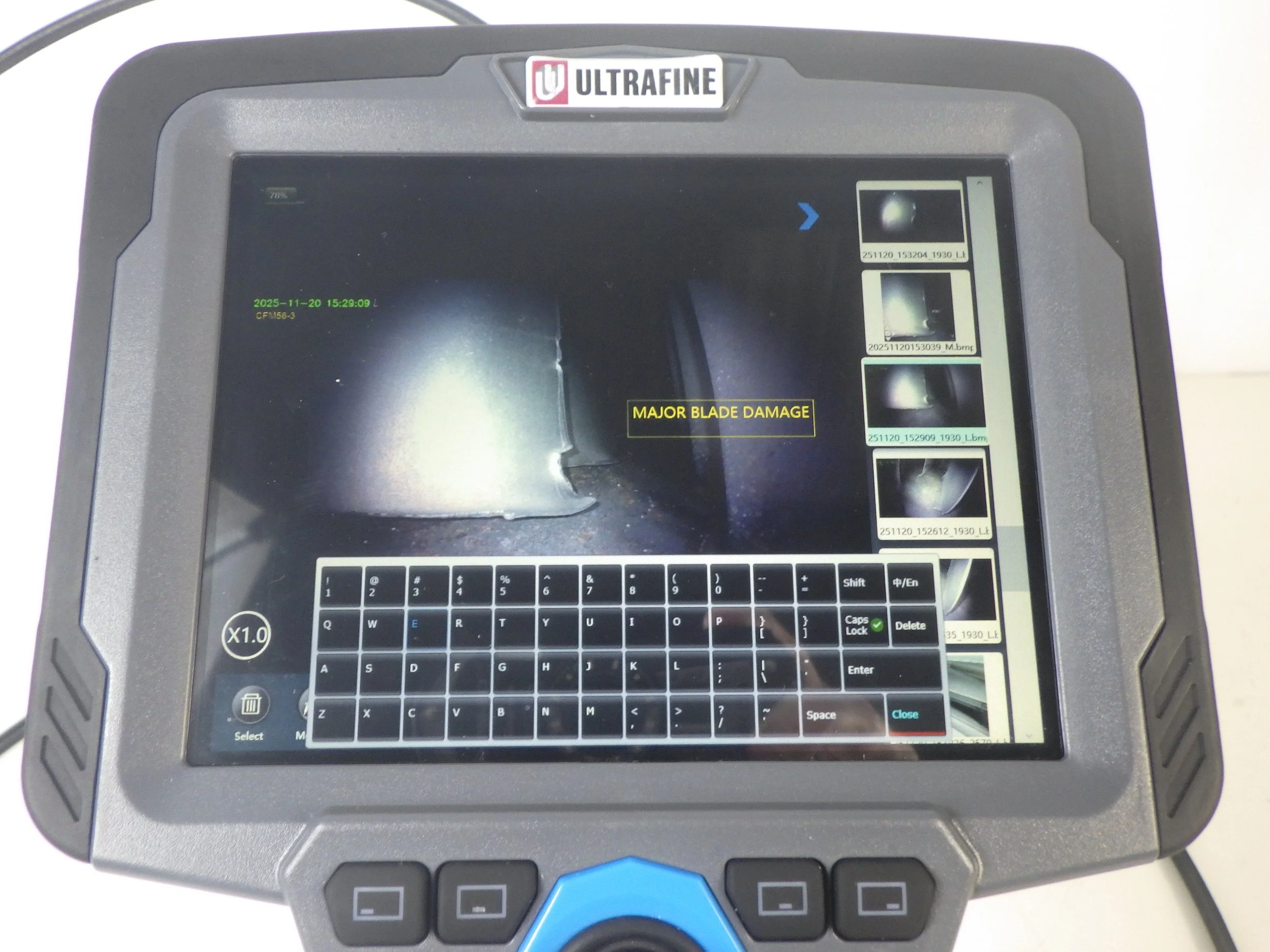

• Folder and Report Creation, Live Image Annotation and “Image Freeze”

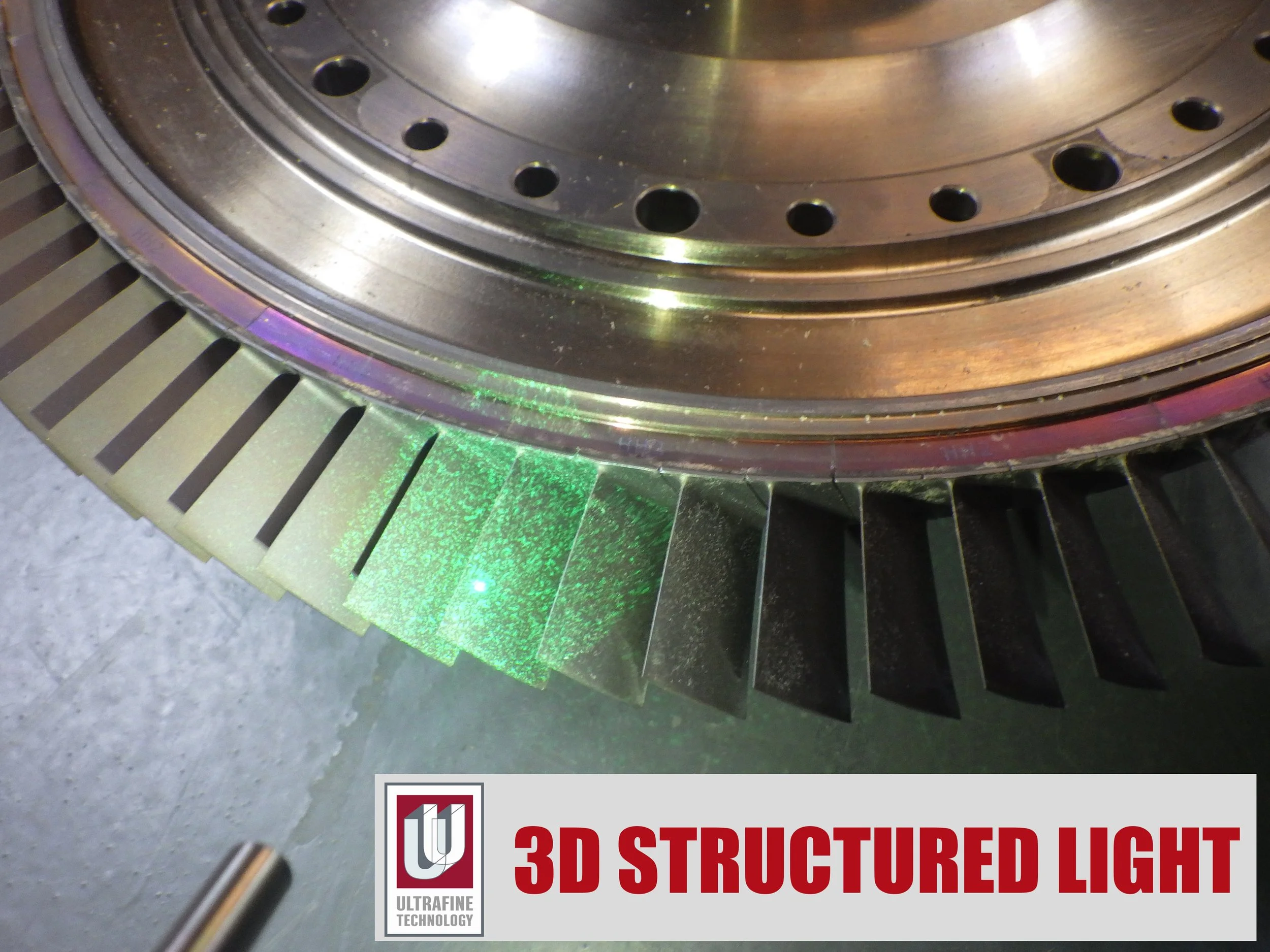

• Binocular Measurement with Structured Light with 0.1 - 0.2mm Accuracy

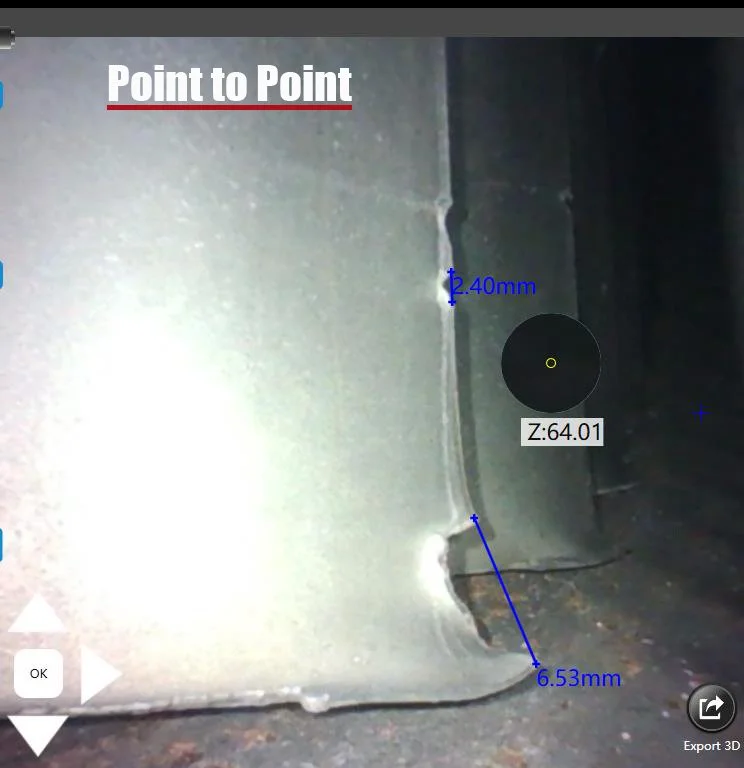

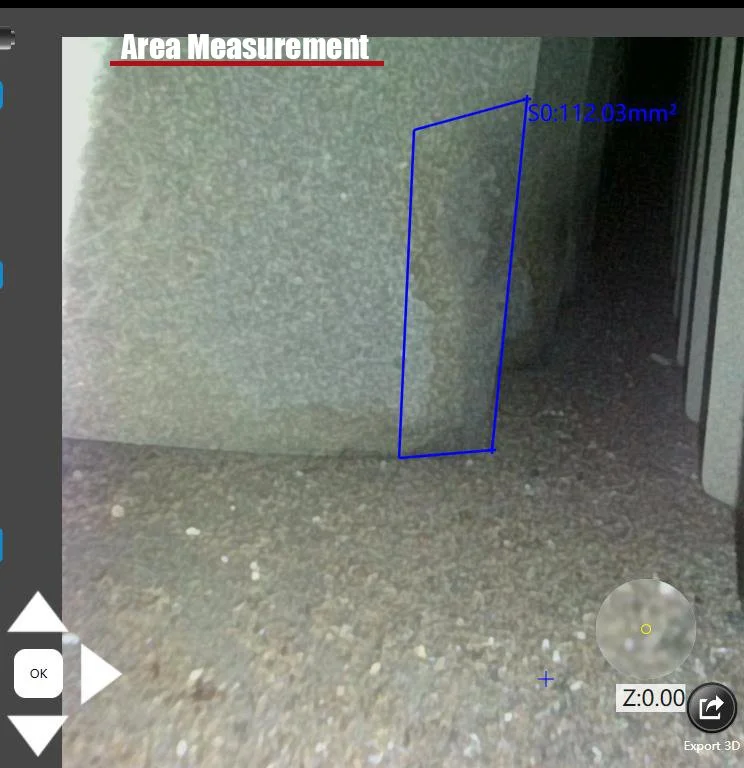

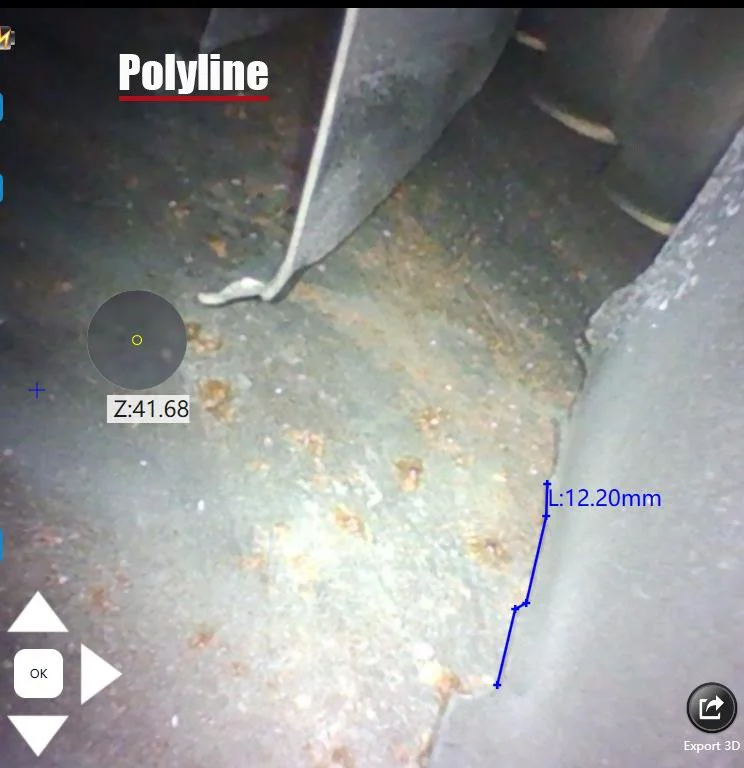

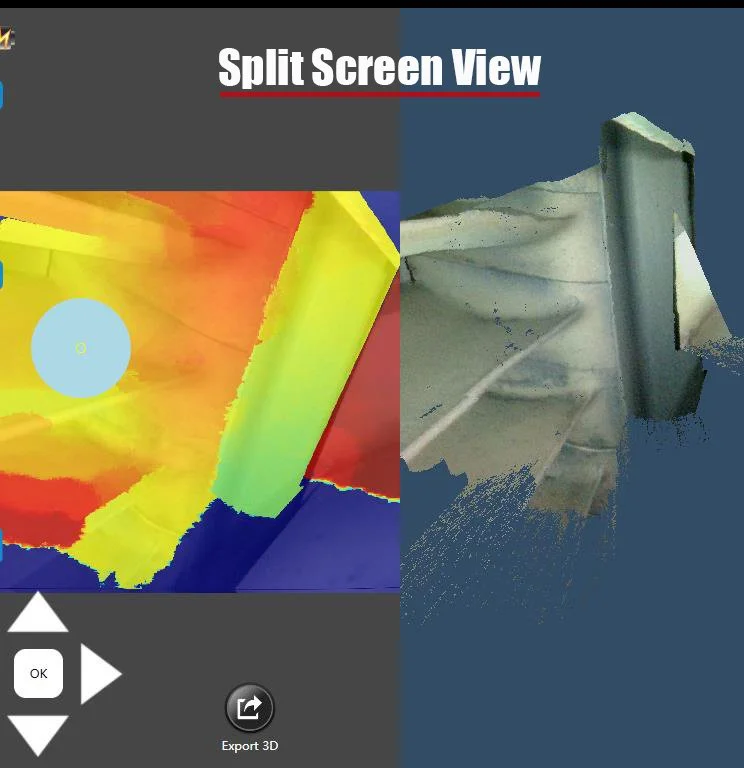

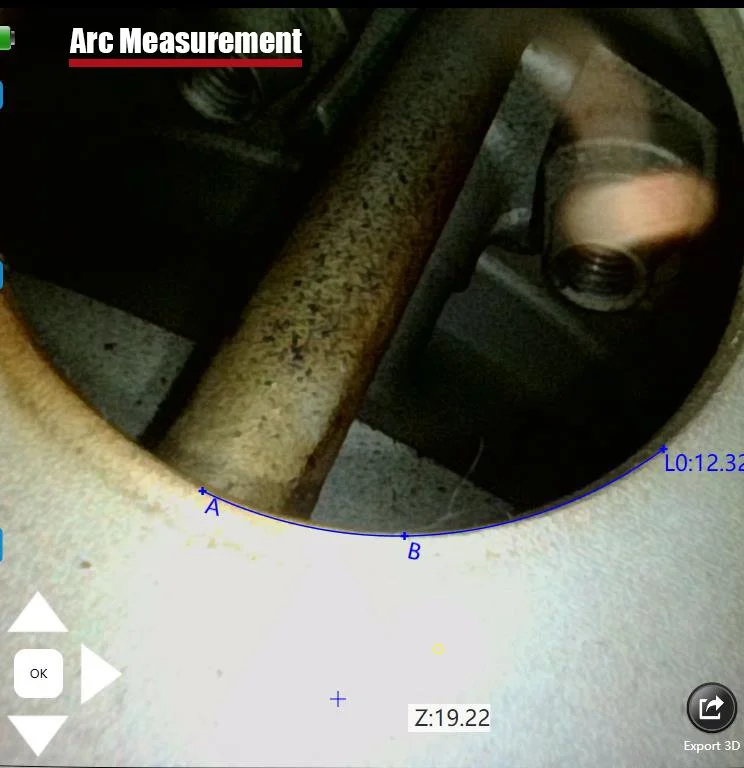

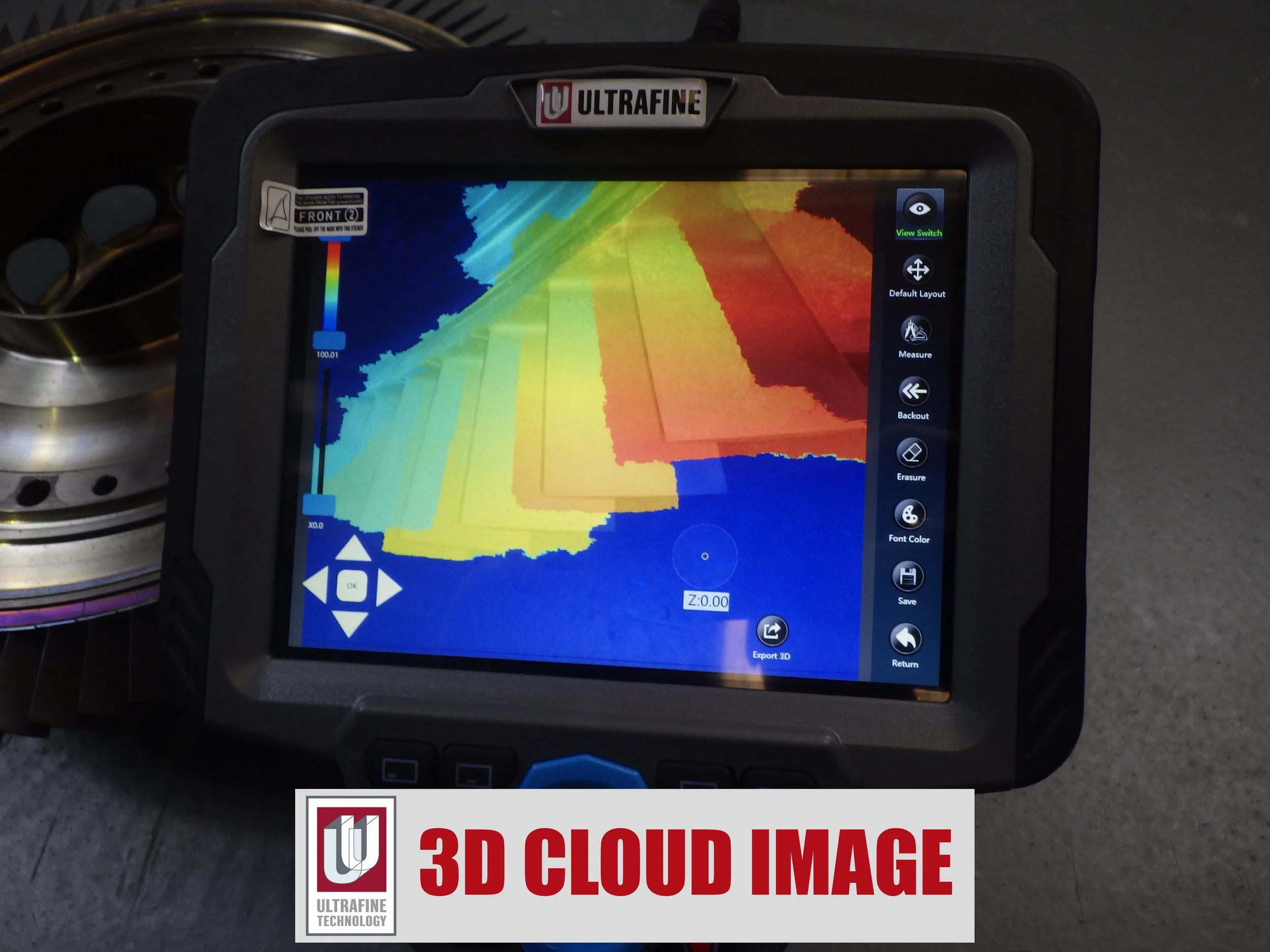

• Point-to-Point, Point-to-Line, Point-to-Surface and Arc Measurement for pictures and cloud images

• 4-Way Servo-Assisted Articulation with “Steer & Stay” feature

• Side View, Working Channel and UV Probe Module options

• USB Hard Drive Storage 128GB with USB 3.0 download socket

• Smart Battery Pack 7000mah capacity

• Lens Temperature Alarm Warning feature

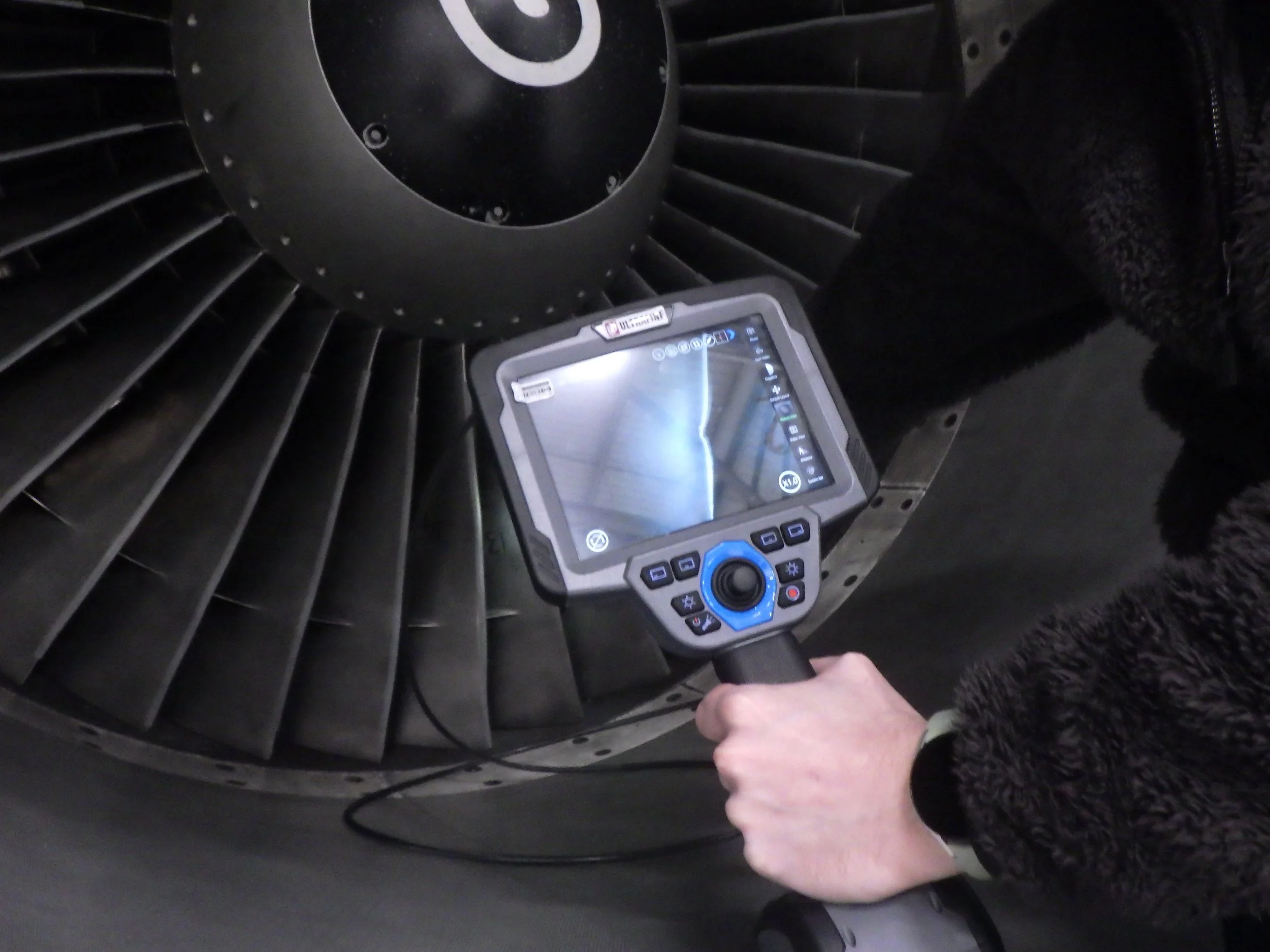

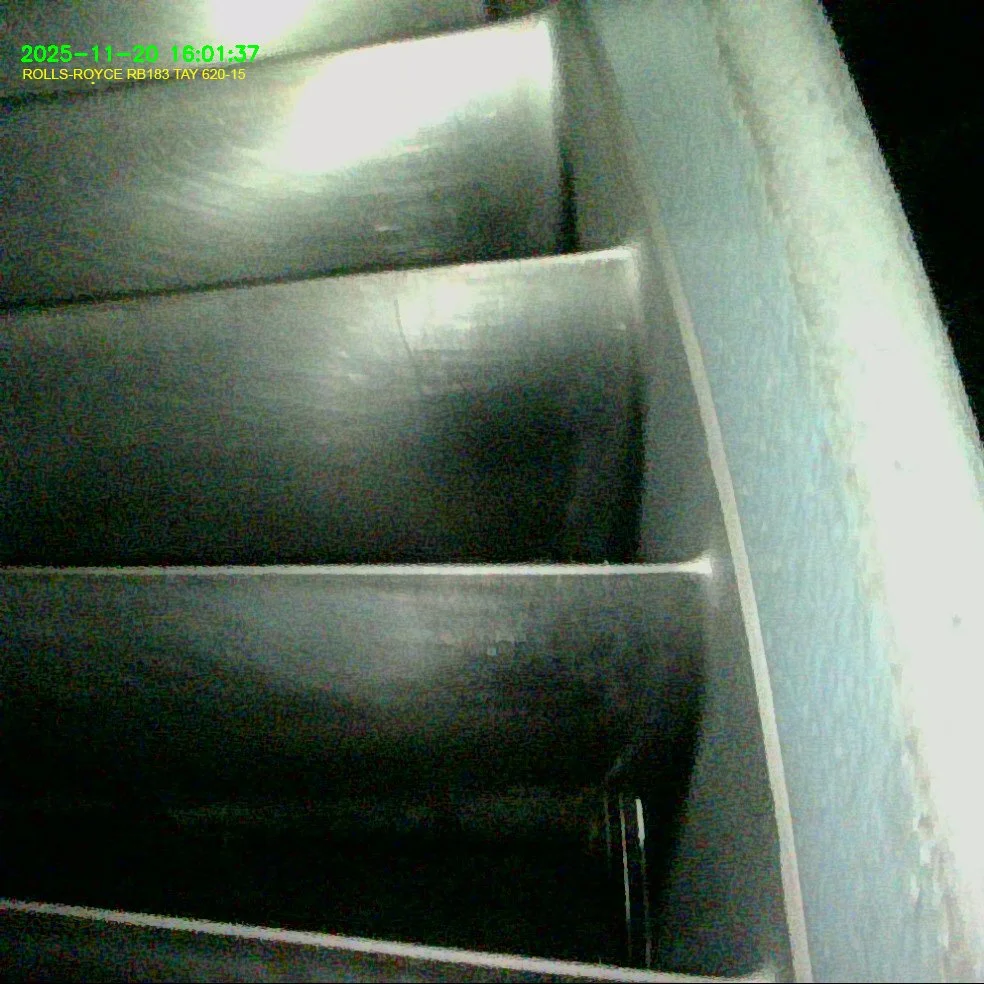

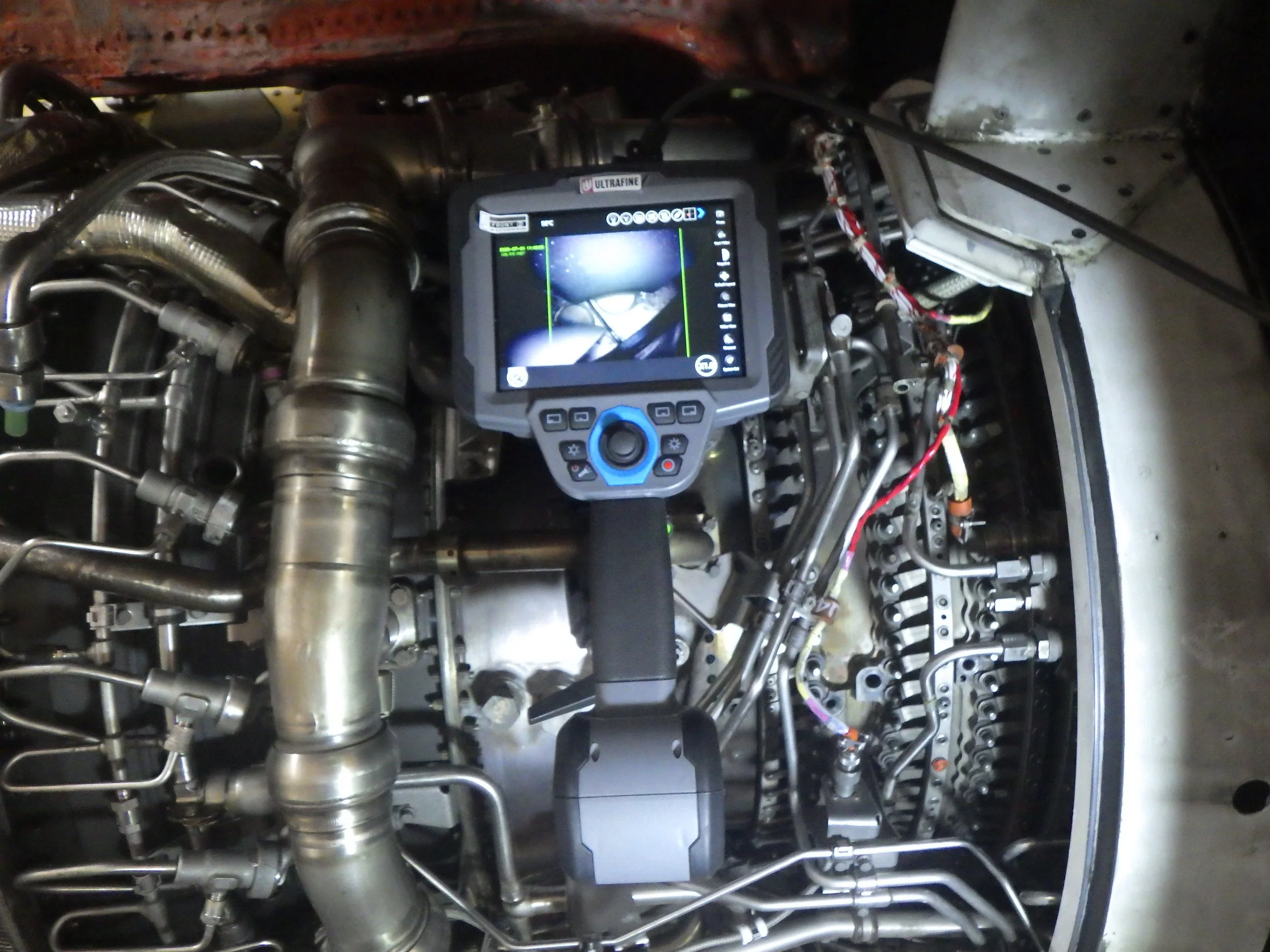

• Engine Turning Tool compatible



Part References (for use with VB-SVPRO-H Handset):-

• UF-3920SV-M: Ø3.9 x 2000mm Measurement Probe (0 ̊ DOV, 4-Way Articulation)

• UF-6030SV-M: Ø6.0 x 3000mm Measurement Probe (0 ̊ DOV, 4-Way Articulation)

• UF-6035SV-M: Ø6.0 x 3500mm Measurement Probe (0 ̊ DOV, 4-Way Articulation)

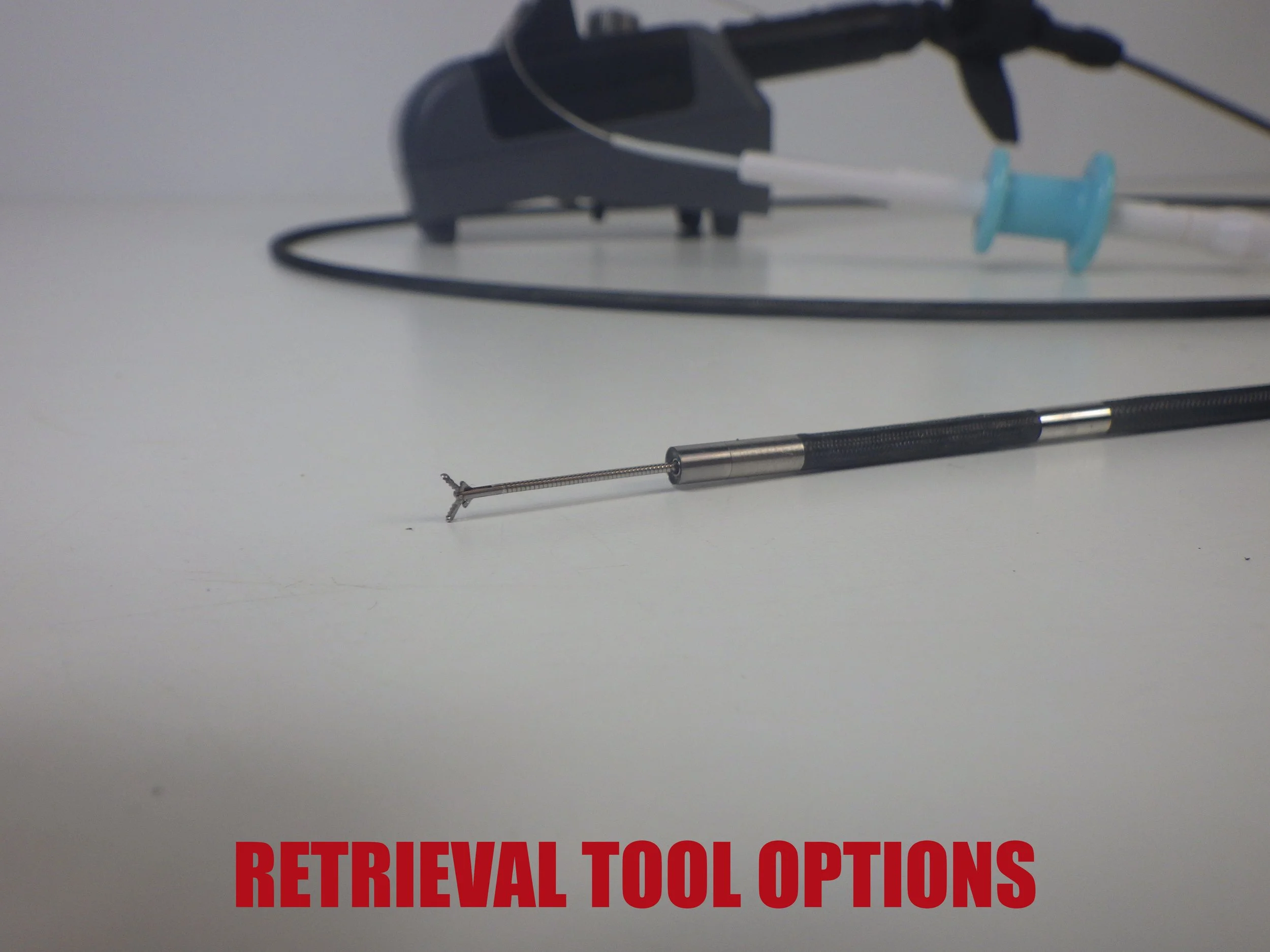

• UF-6020SV-RT: Ø6.0 x 2000mm Working Channel Probe (0 ̊ DOV, 4-Way Articulation)

             with 120° Field of View

             Non-Measurement option available
