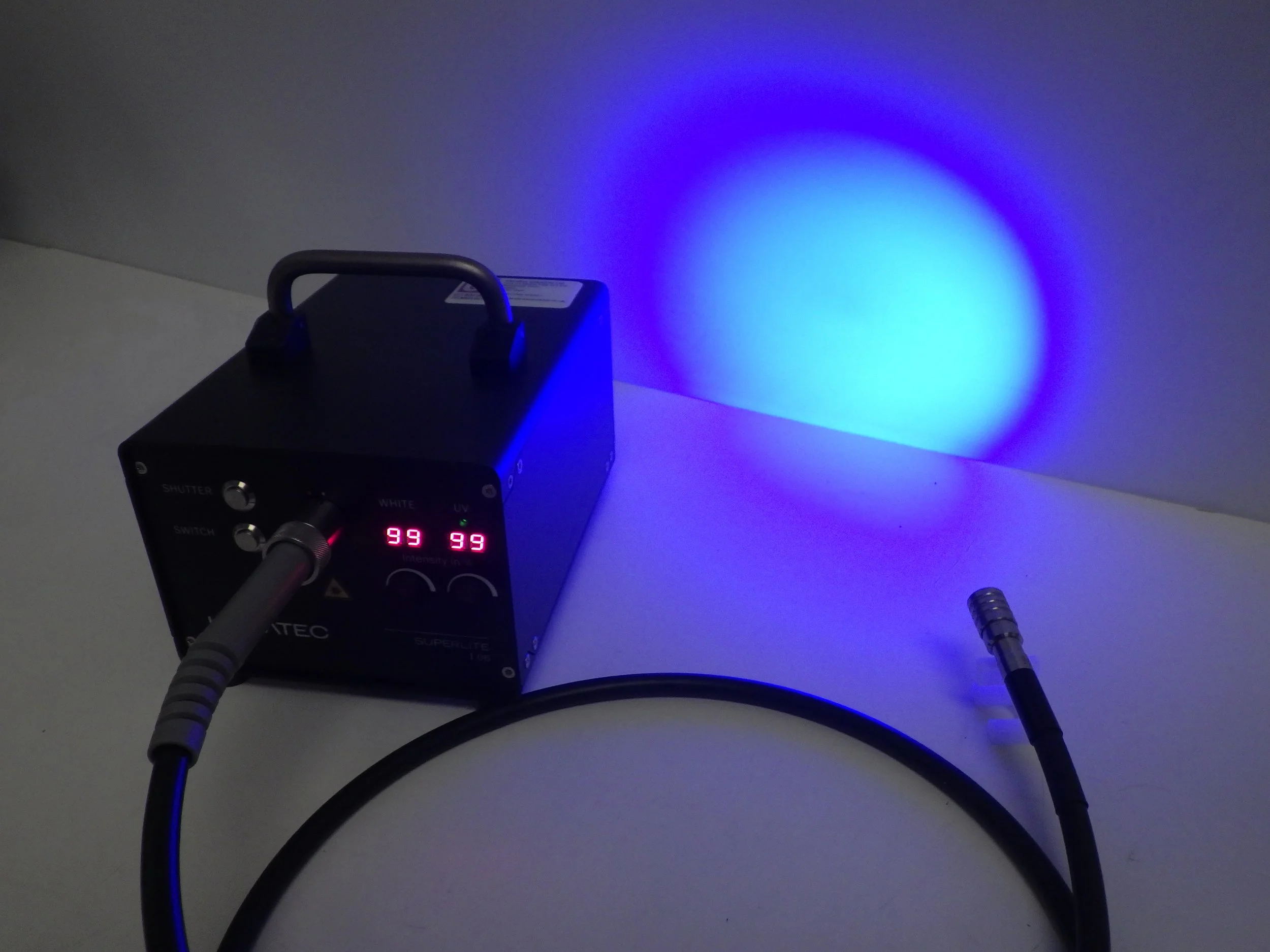

New Superlite LED UV “Switchable” Light Source

Our new Superlite I06 LED Switchable Light Source with 300-Series UV Liquid Light Guide sets the industry standard for Non-Destructive Testing, and offers the highest performance in its class.

Switchable between White Light and UV Light, and suitable for NDT applications, this unit replaces older mercury lamp versions.

Compact, Quiet, Powerful. Suitable for Fluorescent Penetrant / Magnetic Particle Inspection.

Improved filtering enables even higher UV Output Intensity, compared with previous SUV-DC-E version.

• UVA Wavelength 320 - 400 nm

• Fast changeover between UVA and White Light

• Silent operation

• Borescope connection available

• Lamp life 10,000+ hours

Specification :-

UVA Spectrum 320 - 400 nm, Power Density 15,000 mw/ cm2

White Light Spectrum 400 - 700 nm, Power Density 12,500 mw/ cm2

Mains Supply : 110 - 240 VAC

Dimensions : L200 x W150 x H120 mm. Weight : 2.5 kg

Part References :-

I06 : LED Switchable UV Light Source

LLG3.518 : UV Liquid Light Guide 1800mm

UF-FSW : Footswitch

TC005 : Transport case
